2.5 HP Indoor Air Cooled Condensing Unit

R404A 2 HP condensing unit for commercial refrigeration

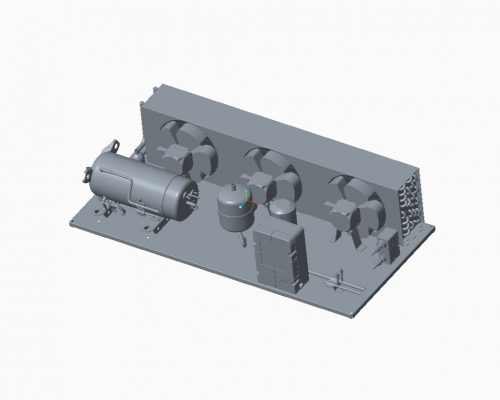

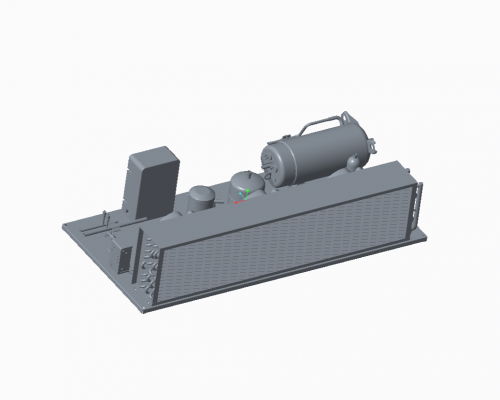

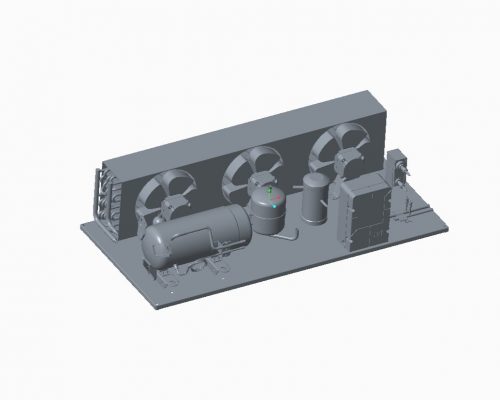

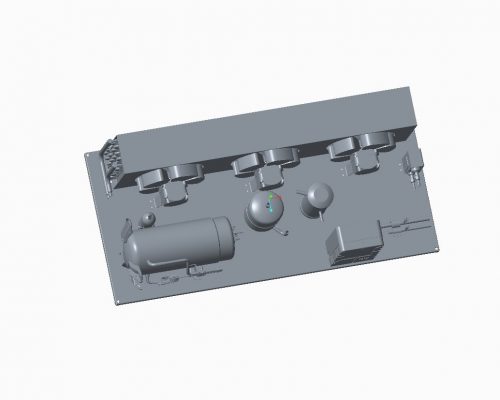

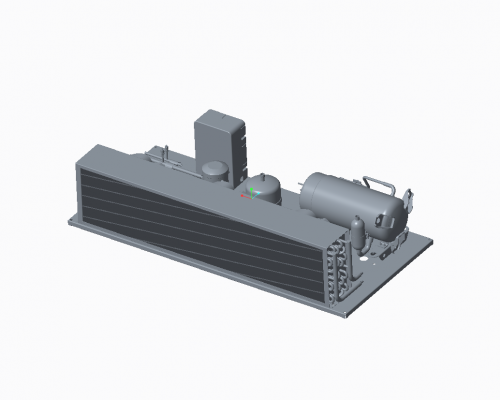

GL-HSN25EL is a 2.5 hp self contained indoor air cooled condensing unit for refrigerated produce display cases. Sanyo refrigerator compressor has been combined to make the air cooled condencing unit suitable for medium temperature and also low temperature commercial refrigeration. Its low height design and easy installation make the self contained condensing unit highly desirable in commercial refrigeration applications.

  • Model: GL-HSN25EL
  • Power supply: 220V~240V/50HZ
  • Refrigerant: R404A, R448A, R449A
  • Cooing capacity: 2.5 HP
  • Evaporating temperature range: -5~-45°C
  • Compressor: Sanyo refrigeration compressor C-3RHV359L4AAL
  • Height: 263mm

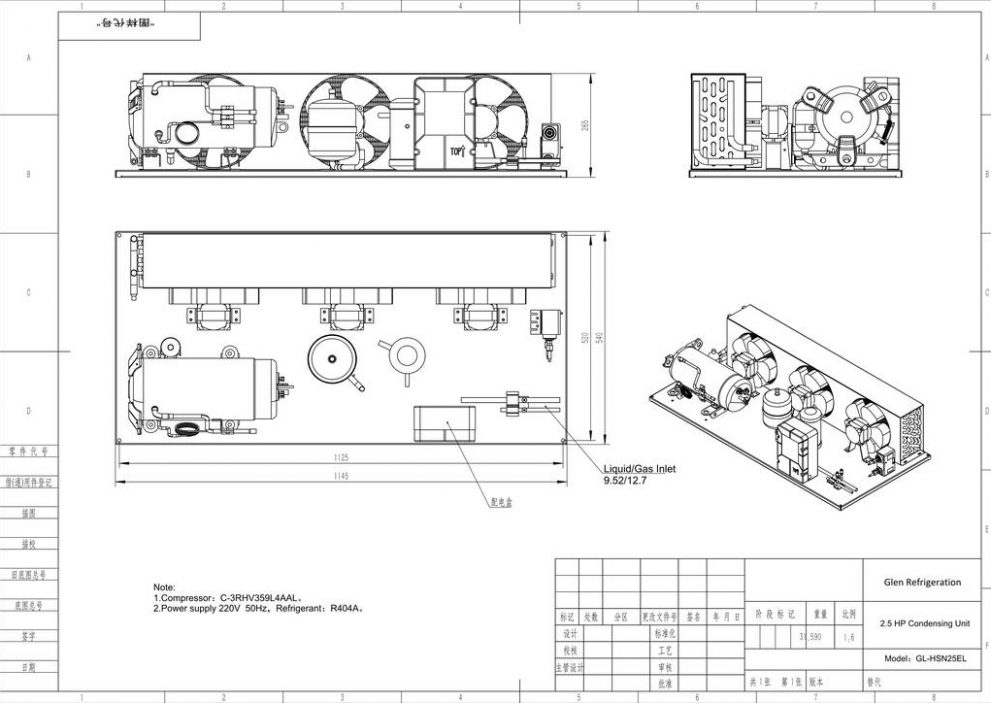

2.5 hp Indoor Air Cooled Condensing Unit GL-HSN25EL DRAWING

2.5 hp indoor air cooled condensing unit Glen Refrigeration

Refrigeration System Diagram

Refrigeration system diagram
Air cooled indoor condensing unit wire diagram

Horizontal Condensing Unit Wire Diagram

This diagram is to used as reference for horizontal condensing unit. Horizontal Condensing Unit Models:

  • GL-HSN7.5EL
  • GL-HSN10EL
  • GL-HSN15EL
  • GL-HSN20EL
  • GL-HSN25EL
  • GL-HSN30EL

Other Models Of Horizontal Condensing Unit

  • Sanyo Refrigeration Compressor
  • EBM motor
  • Refrgerant: R404A, R448A, R449A, R455A
  • Evaporating Temperature: -5°C to -45°C
  • Cooling Capacity: 0.75 HP to 3 HP

Glen Refrigeration One-stop Commercial Refrigeration Systems Provider

Glen Refrigeration is China’s leading manufacturer of condensing unit and refrigeration unit for commercial refrigeration. From small refrigerator condensing unit to large refrigeration condensing unit, from indoor condenser unit to outdoor condenser unit, from air cooled condenser unit to water cooled condenser unit, from split condenser unit to monoblock refrigeration unit, from fixed speed condensing unit to inverter condenser unit, Glen refrigeration can offer the best cooling solution to your commercial refrigeration equipment.

Glen Refrigeration is the only one manufacturer of Sanyo CRSS compressor horizontal air cooled indoor condenser unit in China. Sanyo CRSS compressor special designed for commercial refrigeration, with wide evaporating temperature range from -5°C to -45°C and liquid injection cooling.

The horizontal indoor air cooled condensing unit integrated with Sanyo CRSS refrigeration compressor, condenser, EBM motor, receiver, high and low pressure switch, accumulator, one-way valve, electric box. The electric box is including the run capacitor, start capacitor and replay.

By using Sanyo CRSS rotary refrigeration compressor, the horizontal condensing unit features high reliability and high efficiency. It has a very low height and compact size in design.
