1 hp Refrigeration Condensing Unit For Food Refrigeration

1.5 hp Cooler Condensing Unit Manufactured by Glen Refrigeration

GL-HSN10EL is a horizontal indoor condesing unit for medium temp and low temp commercial refrigeration systems and industrial refrigerator system, designed and produced by Glen Refrigeration, a leading manufacturer of horizontal refrigeration condensing unit in China and is the only one manufacturer of horizontal condesning unit with Sanyo refrigeration compressor. Applications include commercial food and beverage cooling and freezing in pubs, clubs, restaurants, convenience stores, supermarkets, cafes, food processors and many more.

  • Model: GL-HSN10EL
  • Power supply: 220V~240V/50HZ
  • Refrigerant: R404A, R448A, R449A
  • Cooing capacity: 1 HP
  • Evaporating temperature range: -5~-45°C
  • Compressor: Sanyo refrigerator compressor C-RHV161L4AAL
  • Height: 261mm
Glen Refrigeration

Features of 1 hp Refriegration Condensing Unit

Sanyo Rotary Compressor

Sanyo rotary compressor designed for medium and low temperature air cooled refrigeration system, models range in capacity from 1/2 hp to 3 hp provide flexibility suitable for a variety of applications.

Copper Condenser Coil

The condenser air cooled is special designed to meet the low profile of horizontal air cooled condensor unit. In order to prevent the dust clogging and easy for your to maintain and service, we increase the condenser fin spacing.

Wide Evaporating Temperature

Evaporating temperature of commercial refrigerator condenser unit from from -5~-45°C , the lowest freezing temperature reaches -35°C, makes it suitable for commercial refrigeration solutions and industrial refrigeration systems.

EBM Motor

Sanyo refrigerator compressor horizontal condencer unit combines EBM motor to ensure its high reliability in high ambient temperature. EC fan motor is designed to control fan speed resulting in the lowest watt consumption.

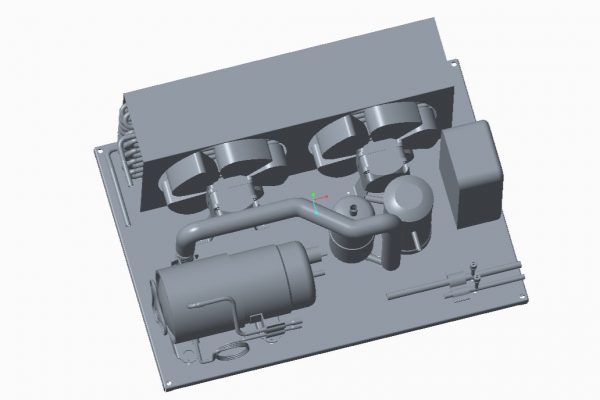

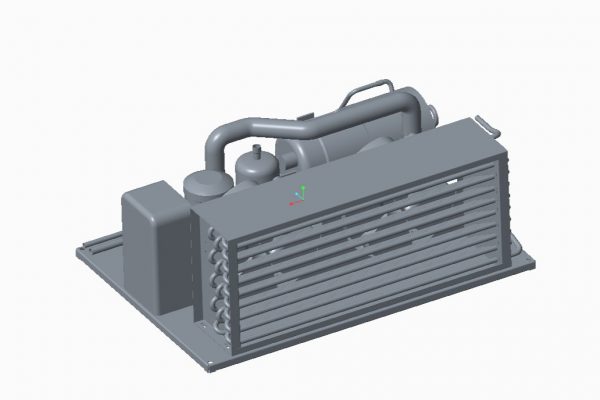

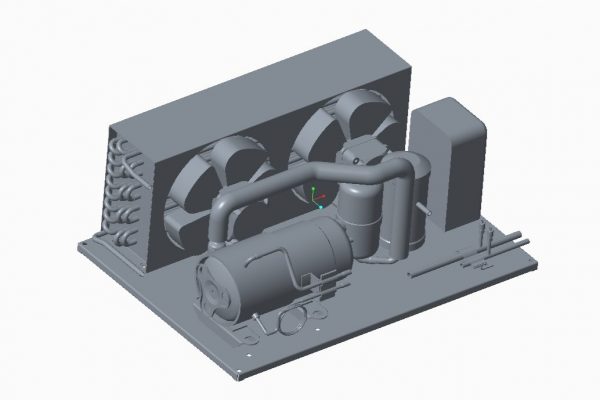

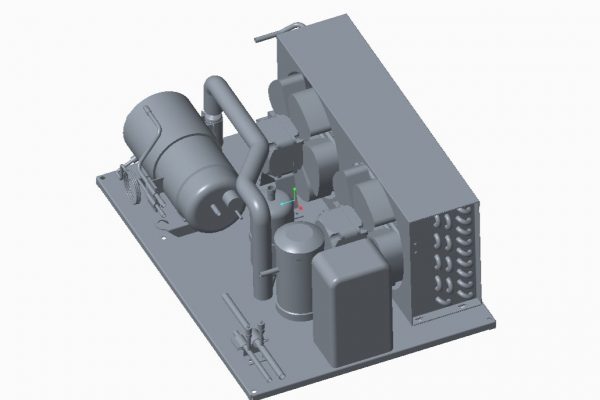

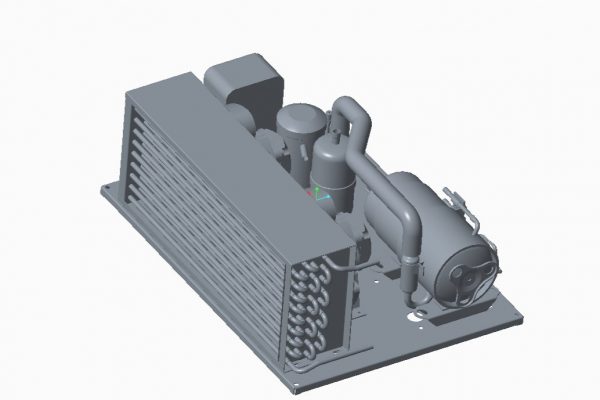

Low Height and Compact Size

In order to provide largest effective volume of the display cabinet, the low height and compact size of horizontal self contained condensing unit have become essential for medium temperature and low temperature application.

Liquid injection Technology

The liquid injection cooling tube is designed to reduce the compressor motor temperature and discharge temperature, making sure the R404A condensing unit suitable for high ambient temperature application.

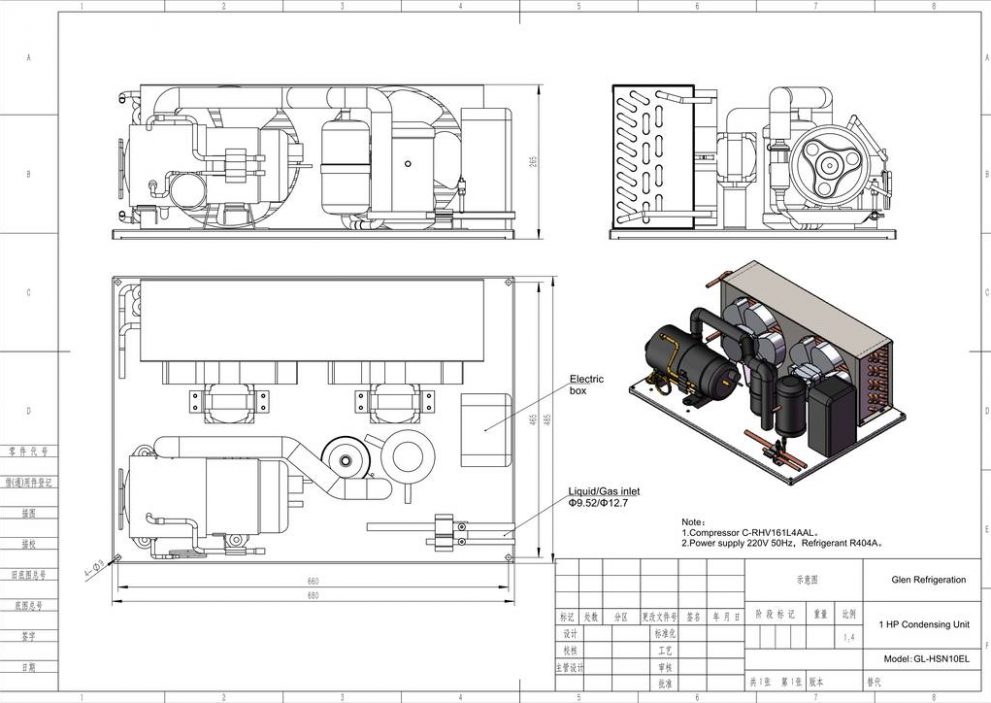

1 hp Refrigeration Condensing Unit GL-HSN10EL DRAWING

1 hp refrigeration condensing unit Glen Refrigeration

Refrigeration System Diagram

Refrigeration system diagram
Air cooled indoor condensing unit wire diagram

Horizontal Condensing Unit Wire Diagram

This diagram is to used as reference for horizontal condensing unit.  Horizontal Condensing Unit Models:

  • GL-HSN7.5EL
  • GL-HSN10EL
  • GL-HSN15EL
  • GL-HSN20EL
  • GL-HSN25EL
  • GL-HSN30EL

Other Models Of Horizontal Condensing Unit

  • Sanyo Refrigeration Compressor
  • EBM motor
  • Refrgerant: R404A, R448A, R449A, R455A
  • Evaporating Temperature: -5°C to -45°C
  • Cooling Capacity: 0.75 HP to 3 HP

Refrigeration Condenser Unit Manufacturer-Glen Refrigeration

Glen Refrigeration is a commercial refrigeration condenser unit company in China. We are the only one manufacture of horizontal indoor condenser unit with Sanyo refrigerator compressor in China.

The horizontal indoor condenser unit consists of Sanyo rotary refrigeration compressor, condenser, EBM fan motor, receiver, high and low pressure switch, accumulator, electric box (including run capacitor, start capacitor, and reply).

Compressor and fan motor are the most important parts of a condenser unit and refrigeration system.

Sanyo rotary compressor special designed for medium temp and low temp (MBP&LBP). The lowest evaporating temperature is -45°C, it can reaches freezing temperature -35°C.

Sanyo refrigeration compressor with liquid injection technology, solves the problem of high discharge temperature under low evaporating temperature condition, assures the high reliability.

The benefits of the horizontal indoor condenser unit includes high reliability, high efficiency, wide evaporating temperature, low height. It has a very low height and compact size in design. By using a horizontal refrigeration compressor, it has features of the lowest height.

Apart from the horizontal indoor condenser unit, Glen Refrigeration also provides small condenser unit, refrigerator condenser unit, air cooled condenser unit, water-cooled condenser unit, outdoor condenser unit, inverter condenser unit, DC condenser unit and so on. We
