Remote Condensing Unit-Panasonic Compressor Outdoor Condensing Unit

  • With Panasonic scroll compressor
  • Medium and low temperature
  • Low noise during operation
  • Minimum -35°C freezing temperature
  • Cooling capacity from 4HP to 12.5HP

Remote Condensing Unit Supplier-Glen Refrigeration

Remote condensing unit, also called outdoor condensing unit, installed far away from the commercial refrigeration equipment. It is usually composed of a refrigeration compressor, condenser, fan motor, receiver, filter dryer, sight glass, solenoid valve, high and low pressure switch, receiver, high and low pressure gauge, water-proof shell. Glen refrigeration offer Remote condensing unit for refrigerated display cabinet, cold room, freezer room, walk in cooler and walk in freezer.

Quality is first. High reliability is the most important for a commercial refrigeration equipment. Glen refrigeration uses Panasonic medium temp compressor and low temp compressor, they are well-built units with the capacity to meet the challenge of high ambient temperature conditions. Plus, these units are very easy to install and operation.

Glen Refrigeration is your one-stop remote condensing unit supplier in China. We can customize according to customer’s requirements.

If you have business or projects that need remote condensing units, you will find the complete line at Glen refrigeration. We’ve got the most convenient and multipurpose units!

Medium Temp Condensing Unit

Medium temp condensing unit are used for high temperature refrigeration and medium temperature refrigeration. The evaporating temperature range is from -25°C to 10°C.

Low Temp Condensing Unit

Low temp condensing unit is well suited for low temperature refrigeration and medium temperature refrigeration. The evaporating temperature range is from -45°C to -5°C.

Remote Condensing Unit for HBP Application and MBP Application

The MBP application remote condensing units adopts Panasonic medium temp compressor, cooling Capacity available from 4 hp to 12.5 hp, the evaporating temperature is from -25°C to 5°C, well suited for high temperature refrigeration and medium temperature refrigeration.

  • Product: Medium temp condensing unit
  • Power Supply: 380V/50Hz, 3PH or 440V~460V/60Hz, 3PH
  • Refrigerant: R404A, R448A, R449A, R455A, R452A.
  • Evaporating temp: from -25°C to 5°C
  • Cooling capacity: 4 HP to 12.5 HP
4 HP Remote Condensing Unit for HBP MBP Application

GL-SN40FM is a 4HP air cooled outdoor condensing unit, adopts Panasonic scroll compressor 3CB067SA0M, designed for medium temp and high temp refrigeration, such as walk in cooler, and freezers and display cases.(440V~460V/60Hz 3PH outdoor condensing unit is also available)

  • Model: GL-SN40FM
  • Power supply: 380V/50HZ, 3PH
  • Refrigerant: R404A, R448A, R449A, R452A, R455A
  • Cooling capacity: 4 HP
  • Application: Medium temp. and high temp.
  • Evaporating temperature: -25°C to 5°C
  • Compressor: Panasonic scroll compressor 3CB067SA0M
  • External dimension(L*W*H): 1000mm*420mm*822mm
5 HP Remote Condensing unit for HBP MBP Application

GL-SN50FM is a 5HP remote refrigeration condenser unit for medium temp and high temp refrigeration. Combing Panasonic medium temp compressor 3CB084SA0M with larger condenser coil, it provides high reliability and performance.(440V~460V/60Hz 3PH outdoor condensing unit is also available)

  • Model: GL-SN50FM
  • Power supply: 380V/50HZ, 3PH
  • Refrigerant: R404A, R448A, R449A, R452A, R455A
  • Cooling capacity: 5 HP
  • Application: Medium temp. and high temp.
  • Evaporating temperature: -25°C to 5°C
  • Compressor: Panasonic scroll compressor 3CB084SA0M
  • External dimension(L*W*H): 1010mm*440mm*1220mm
6 HP Remote Condensing unit for HBP MBP Application

6HP remote condensing unit refrigeration GL-SN60FM, with low noise compressor 3CB100SA0M, delivers excellent performance and high reliability for your cold room and freezer room.(440V~460V/60Hz 3PH outdoor condensing unit is also available)

  • Model: GL-SN60FM
  • Power supply: 380V/50HZ, 3PH
  • Refrigerant: R404A, R448A, R449A, R452A, R455A
  • Cooling capacity: 6 HP
  • Application: Medium temp. and high temp.
  • Evaporating temperature: -25°C to 5°C
  • Compressor: Panasonic scroll compressor 3CB100SA0M
  • External dimension(L*W*H): 1010mm*440mm*1220mm
7 HP Remote Condensing unit for HBP MBP Application

7HP outdoor condensing unit GL-SN70FM is a medium temp condensing unit, equipped with Panasonic scroll compressor 3CB110SA0M, designed for HBP application and MBP application.(440V~460V/60Hz 3PH outdoor condensing unit is also available)

  • Model: GL-SN70FM
  • Power supply: 380V/50HZ, 3PH
  • Refrigerant: R404A, R448A, R449A, R452A, R455A
  • Cooling capacity: 7 HP
  • Application: Medium temp. and high temp.
  • Evaporating temperature: -25°C to 5°C
  • Compressor: Panasonic scroll compressor 3CB110SA0M
  • External dimension(L*W*H): 1010mm*440mm*1220mm
8 HP Remote Condensing unit for HBP MBP Application

8 HP remote refrigeration condenser unit GL-SN80FM, features medium temp compressor, large condenser, WEIGUANG fan motor, variable speed fan control and smart electrical control, delivers excellent performance and high reliability condensing unit for our customers.(440V~460V/60Hz 3PH outdoor condensing unit is also available)

  • Model: GL-SN80FM
  • Power supply: 380V/50HZ, 3PH
  • Refrigerant: R404A, R448A, R449A, R452A, R455A
  • Cooling capacity: 8 HP
  • Application: Medium temp. and high temp.
  • Evaporating temperature: -25°C to 5°C
  • Compressor: Panasonic scroll compressor 3CC137SLA0M
  • External dimension(L*W*H): 1290mm*780mm*920mm
10 HP Remote Condensing unit for HBP MBP Application

10 HP Remote Condensing unit GL-SN100FM with Panasonic scroll compressor 3CC171LA0M, is a drop-in replacement of copeland refrigeration condensing units with ZB76KQE. (440V~460V/60Hz 3PH outdoor condensing unit is also available)

  • Model: GL-SN100FM
  • Power supply: 380V/50HZ, 3PH
  • Refrigerant: R404A, R448A, R449A, R452A, R455A
  • Cooling capacity: 10 HP
  • Application: Medium temp. and high temp.
  • Evaporating temperature: -25°C to 5°C
  • Compressor: Panasonic scroll compressor 3CC171LA0M
  • External dimension(L*W*H): 1290mm*780mm*1130mm
12.5 HP Remote Condensing unit for HBP MBP Application

12.5 HP remote condensing units GL-SN125FM assures the commercial refrigeration equipment have a high reliability and excellent cooling performance with famous-brand Panasonic scroll compressor. (440V~460V/60Hz 3PH outdoor condensing unit is also available)

  • Model: GL-SN125FM
  • Power supply: 380V/50HZ, 3PH
  • Refrigerant: R404A, R448A, R449A, R452A, R455A
  • Cooling capacity: 12.5 HP
  • Application: Medium temp. and high temp.
  • Evaporating temperature: -25°C to 5°C
  • Compressor: Panasonic scroll compressor 3CC205LA0M
  • External dimension(L*W*H): 1550mm*890mm*1150mm

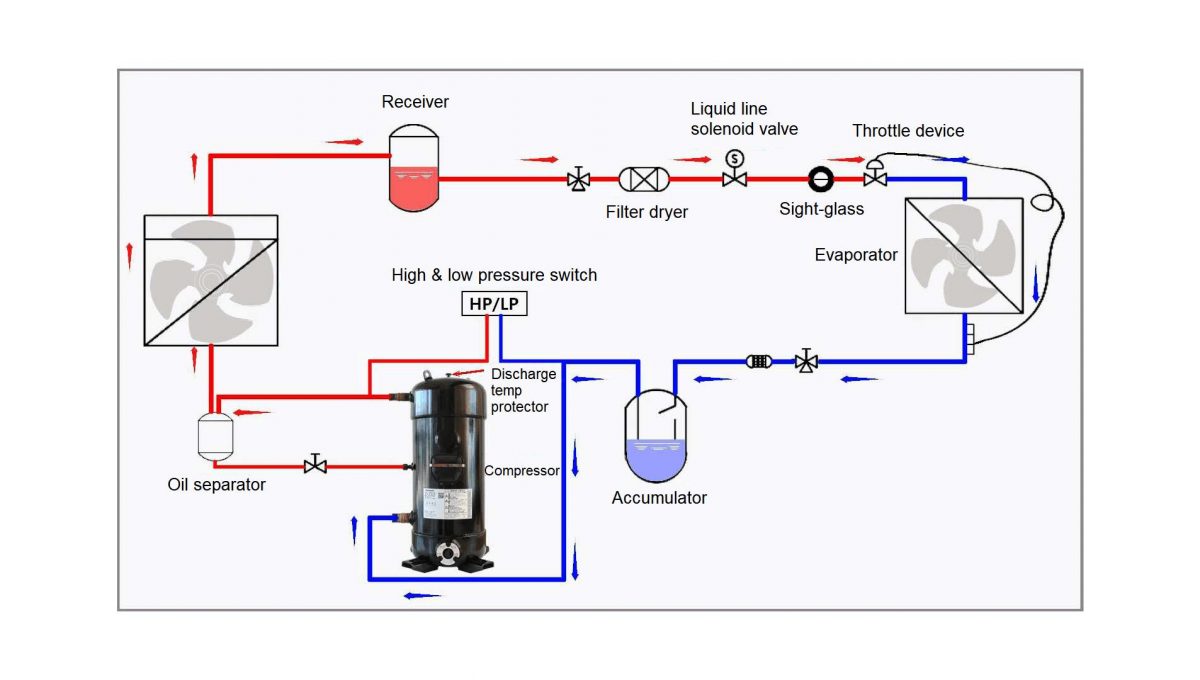

MBP HBP Refrigeration System Diagram

MBP Panasonic compressor remote condensing unit refrigeration system diagram

Remote Condensing Unit for LBP Application and MBP Application

Remote condensing unit for LBP application, adopts liquid injection compressor, the lowest evaporating temperature -45°C, the minimum freezing temperature can reach -35°C. Panasonic scroll compressor with liquid injection cooling provides high reliability of the condensing unit when meet the challenge of high ambient temperature.

  • Product: Low temp condensing unit
  • Power supply: 380V/50Hz or 440V~460V/60Hz or 380V/60Hz
  • Refrigerant: R404A, R448A, R449A, R455A, R452A.
  • Evaporating temp: from -45°C to -5°C
  • Cooling capacity: 4 HP to 12.5 HP

4 HP Remote Condensing unit GL-SN40FL with Panasonic low temp compressor C-SBN303L8A, widely used in commercial display freezers, freezer room and walk in freezer. (440V~460V/60Hz or 380V/60Hz outdoor condensing units are all available.)

  • Model: GL-SN40FL
  • Power supply: 380V/50HZ, 3PH
  • Refrigerant: R404A, R448A, R449A, R455A, R452A
  • Cooling capacity: 4 HP
  • Application: Medium temp. and high temp.
  • Evaporating temperature: -45°C to -5°C
  • Compressor: Panasonic scroll compressor C-SBN303L8A
  • External dimension(L*W*H): 1000mm*420mm*822mm
4 HP Remote Condensing unit for for LBP Application

Remote condensing unit refrigeration GL-SN50FL features Panasonic LBP compressor C-SBN373L8A, famous for low noise level. It is a good replacement of Copeland outdoor condensing unit with compressor ZF15KQE. (440V~460V/60Hz or 380V/60Hz outdoor condensing units are all available.)

  • Model: GL-SN50FL
  • Power supply: 380V/50HZ, 3PH
  • Refrigerant: R404A, R448A, R449A, R455A, R452A
  • Cooling capacity: 5 HP
  • Application: Medium temp. and high temp.
  • Evaporating temperature: -45°C to -5°C
  • Compressor: Panasonic scroll compressor C-SBN373L8A
  • External dimension(L*W*H): 1010mm*440mm*1220mm
5 HP Remote Condensing unit forfor LBP Application

GL-SN60FL is a 6HP outdoor condensing unit with LBP compressor C-SBN453L8A. Liquid injection cooling solves the high discharge temperature under low evaporating temperature condition, enhances the high reliability of the condensing unit. (440V~460V/60Hz or 380V/60Hz outdoor condensing units are all available.)

  • Model: GL-SN60FL
  • Power supply: 380V/50HZ, 3PH
  • Refrigerant: R404A, R448A, R449A, R455A, R452A
  • Cooling capacity: 6 HP
  • Application: Medium temp. and high temp.
  • Evaporating temperature: -45°C to -5°C
  • Compressor: Panasonic scroll compressor C-SBN453L8A
  • External dimension(L*W*H): 1010mm*440mm*1220mm
6 HP Remote Condensing unit for LBP Application

GL-SN70FL is a 7HP remote refrigeration condenser unit, designed for low temperature refrigeration. Panasonic scroll compressor adopts the liquid injection cooling, the lowest evaporating temperature is -45°C, can replace Copeland scroll outdoor condensing unit directly. (440V~460V/60Hz or 380V/60Hz outdoor condensing units are all available.)

  • Model: GL-SN70FL
  • Power supply: 380V/50HZ, 3PH
  • Refrigerant: R404A, R448A, R449A, R455A, R452A
  • Cooling capacity: 7 HP
  • Application: Medium temp. and high temp.
  • Evaporating temperature: -45°C to -5°C
  • Compressor: Panasonic scroll compressor 3CC120SA03
  • External dimension(L*W*H): 1010mm*440mm*1220mm
7 HP Remote Condensing unit for LBP Application

GL-SN80FL is a 8HP remote condensing units for low temperature cold storage. The liquid injection cooling combines variable speed fan control, smart electric control, provides excellent performance and high reliability for our customers. (440V~460V/60Hz or 380V/60Hz outdoor condensing units are all available.)

  • Model: GL-SN80FL
  • Power supply: 380V/50HZ, 3PH
  • Refrigerant: R404A, R448A, R449A, R455A, R452A
  • Cooling capacity: 8 HP
  • Application: Medium temp. and high temp.
  • Evaporating temperature: -45°C to -5°C
  • Compressor: Panasonic scroll compressor 3CC137SA03
  • External dimension(L*W*H): 1340mm*780mm*920mm
8 HP 10HP 12.5HP Remote Condensing unit
8 HP Remote Condensing unit for LBP Application

GL-SN100FL is a 10HP air cooled outdoor condensing unit for walk in freezer and freezer room. Panasonic scroll compressor 3CC171SA03 delivers superior cooling and energy efficiency in MT and LT applications. (440V~460V/60Hz or 380V/60Hz outdoor condensing units are all available.)

  • Model: GL-SN100FL
  • Power supply: 380V/50HZ, 3PH
  • Refrigerant: R404A, R448A, R449A, R455A, R452A
  • Cooling capacity: 10 HP
  • Application: Medium temp. and high temp.
  • Evaporating temperature: -45°C to -5°C
  • Compressor: Panasonic scroll compressor 3CC171SA03
  • External dimension(L*W*H): 1340mm*780mm*1130mm
10 HP Remote Condensing unit for LBP Application

GL-SN125FL is a 12.5HP walk in freezer condenser unit for low temp and medium temp refrigeration. It adopts low noise Panasonic scroll compressor 3CC171SA03. The lowest evaporating temperature is -45°C, so it can reach -35°C freezing temperature. (440V~460V/60Hz or 380V/60Hz outdoor condensing units are all available.)

  • Model: GL-SN125FL
  • Power supply: 380V/50HZ, 3PH
  • Refrigerant: R404A, R448A, R449A, R455A, R452A
  • Cooling capacity: 12.5 HP
  • Application: Medium temp. and high temp.
  • Evaporating temperature: -45°C to -5°C
  • Compressor: Panasonic scroll compressor 3CC216SA03
  • External dimension(L*W*H): 1550mm*890mm*1150mm
12.5 HP Remote Condensing unit for LBP Application

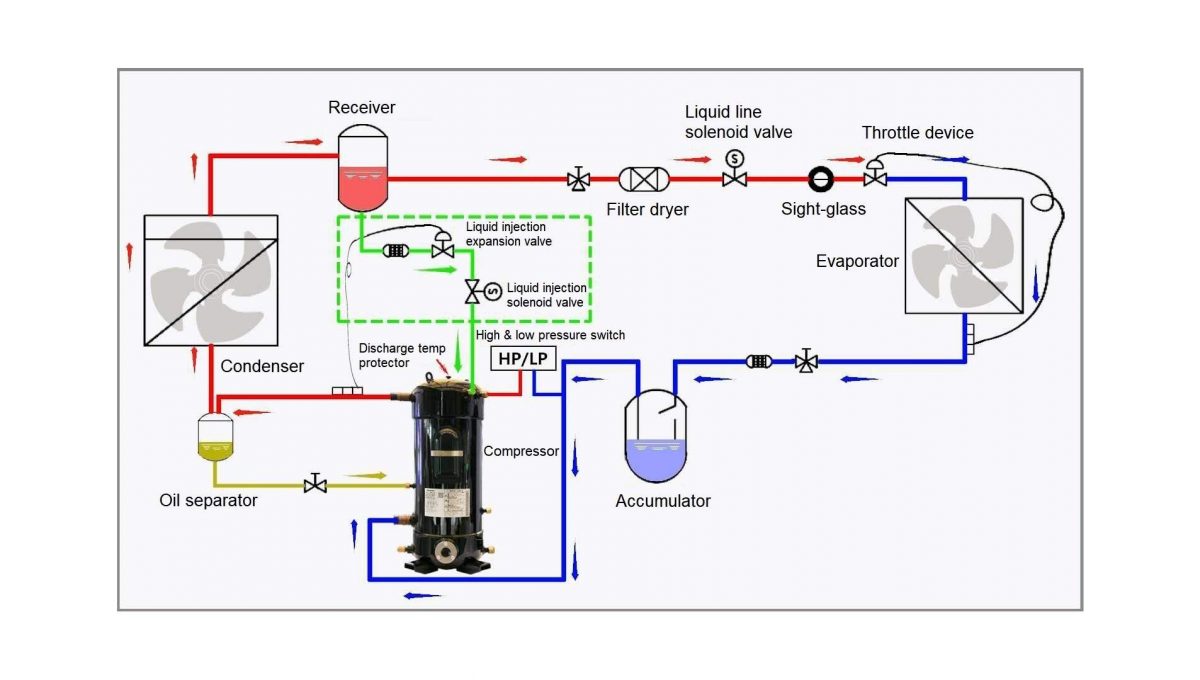

LBP Refrigeration System Diagram

LBP condensing unit refrigeration system diagram

Advantages of Remote Condensing Unit Refrigeration

Low sound level

Glen refrigeration offers the remote condensing unit with Panasonic scroll compressor, features a lower sound level because the ultra-precision machining and assembly technology.

High Reliability

Panasonic scroll compressor has improved the design of the motor, discharge valve plate, bearing to ensure the high reliable and stable operation of the compressor and condensing unit.

Liquid Injection Cooling

The low temperature compressor adopts liquid injection cooling technology, solving the problem of high discharge temperature under low evaporating temperature condition.

HBP MBP Application

The lowest evaporating temperature of medium temp condensing unit is -25°C, which reach the minimum -18°C freezing temperature, well-suited for MBP application and HBP application.

MBP LBP Application

The lowest evaporating temperature of low temp Panasonic scroll compressor condensing unit is -45°C, which reach the minimum -35°C freezing temperature.

ECO Friendly Refrigeration

The remote condensing unit with Panasonic scroll compressor are suitable for environmental friendly refrigerant R404A, R448A, R449A, R455A, R452A.

Panasonic Scroll Compressor for MBP Application

Compressor is the most important part of a condensing unit, like human heart. So the reliability of the refrigeration compressor decides the reliability of the condensing unit. Glen refrigeration offers remote condensing units with Panasonic scroll compressors. They have high reliability proven in decades of commercial refrigeration market applications. They are designed with low sound and adaptability to ambient temperature. Please find the operation envelope of Panasonic scroll compressor for MBP application on the left.

Panasonic Scroll Compressor for LBP Application

Panasonic scroll compressor are renowned for their low noise level, high reliability, durability and excellent performance in HBP, MBP and LBP applications. In low temp condensing unit, Panasonic scroll compressor adopts liquid injection cooling, makes the lowest evaporating temperature -45°C, and enhance the reliability when meets challenge of high ambient temperature. Please find the operation envelope of Panasonic scroll compressor for LBP application on the right.

Air Cooled Condenser with Hydrophilic Aluminum Foil

The air cooled condenser size has the important function of the condensing unit efficiency and reliability. In order to ensure the remote condensing unit work normally during MBP application and under high ambient temperature, we enlarge the condenser size, increase the heat exchange area, adopt internally threaded copper tube and hydrophilic aluminum foil, to ensure the condensing unit with high efficiency and high reliability.

Smart Electric Control

Glen refrigeration offers the remote condensing units with smart electric control, like CoreSense technology, it integrated multi-protection, including discharge temperature protection, high pressure and low pressure protection, phase sequence protection, liquid injection protection, fan speed regulation, start frequently protection. The smart electric control will protect the compressor operating in false conditions. With the smart electric control, technicians use easy to interpret fault codes to remove the guesswork from troubleshooting. So maintaining your refrigeration systems doesn’t have to be complicated.

Customer-oriented

Glen refrigeration is a customer-oriented company, we have strong R&D team and production capability. We value our every customers’ opinions, because they are the people who actually use a product. What kind of products do they need? What find of functions do they need? We will strive to incorporate their suggestions and ideas to improve the products, to ensure that you received the best products and service for the lifetime of your investment.

Glen Refrigeration-Sanyo Refrigeration Compressor and Condenser Unit Suppliers

Glen Refrigeration is refrigeration condenser unit company in China. We focus on R&D and production of horizontal condenser unit refrigeration, air cooled condensing units refrigeration, water cooled condensing unit refrigeration, indoor condensing unit refrigeration, outdoor condenser unit refrigeration, inverter condensing unit refrigeration, variable speed condensing unit refrigeration and so on.

Apart from the indoor condenser unit and outdoor condenser unit, we also design a complete range of monoblock refrigeration units, including packaged refrigeration unit, self-contained refrigeration unit, drop in refrigeration unit, plug-in refrigeration unit, modular refrigeration unit, freezer refrigeration unit, roof mounted refrigeration unit, walk in cooler refrigeration unit, drop in cold room refrigeration unit, and so on.

From small refrigeration condensing units to large commercial refrigeration condensing units, Glen refrigeration delivers one-stop refrigeration solutions.

We are committed to customer service and are proud of the long standing relationship we maintain with our clients.

Ceiling Mounted Refrigeration Unit
Monoblock cooling unit monoblock freezer unit
Monoblock Refrigeration Unit
Water-Cooled Condenser Unit
Wall mounted refrigeration unit packaged refrigeration unit
Wall Mounted Refrigeration Unit
Commercial condensing unit 3hp
Indoor Condenser Unit
Cold Room Evaporator

Catalog Download

Indoor Condensing Unit
Outdoor Condensing Unit
Outdoor Condensing Unit
Cold Storage Evaporator

Frequently Asked Questions

For the outdoor condensing unit 4HP to 7HP, it doesn’t equip with the oil separator. Now the production and processing precision of scroll compressor is very high. The oil output is much less compared with piston compressors, large semi-hermetic compressors, screw compressors. So the units below 7HP or 6 HP don’t need to install the oil separator. But if you need the oil separator, it is OK. We can produce according to your requirements.

For outdoor condensing units 8HP and above 8HP, they are equipped with the oil separator. Because the system pipelines are longer, it needs to install the oil separator to enhance oil return.

About the liquid solenoid valve, we can offer 4HP~7HP outdoor condensing unit with liquid solenoid valve. But if our customer can install the liquid solenoid valve on site, it is better. Because the liquid solenoid valve is installed in front of expansion valve. The closer to the expansion valve, the better.

For the outdoor condensing unit 8HP and above 8HP, the solenoid valve is not installed in the condensing unit. Our customer needs to install on site. Because the pipeline of 8HP and above 8HP outdoor condensing unit is long.

Yes, the condenser fan speed is variable according to the change OF ambient temperature. We offer the outdoor condensing unit with an electric board, the electric board has the functions:

  • Discharge temperature over-high protection
  • High pressure low pressure protection
  • Phase sequence protection
  • Over-voltage under-voltage protection
  • Fan speed regulation
  • Start frequently protection
  • Over-current protection (for 8HP and above 8HP outdoor condensing unit)

There is a ambient temperature sensor on the condensing unit. The fan speed is controlled by the electric board through the change of the ambient temperature.

Yes, we can offer the outdoor condensing unit with Danfoss dual pressure switch or Saginomiya pressure switch. Please tell us your requirements when placing the order. We will produce according to your requirements.

The condensing unit condensing temperature range is from 10°C to 60°C, so it has high reliability and high durability when used in high ambient temperature.

Yes, the R404A condensing units are available for R448A and R449A.

Yes, we have LOW TEMPERATURE CONDENSING UNIT with Panasonic scroll compressor and Emerson Copeland scroll compressor.

Yes, except the outdoor refrigeration condensing unit for cold room, freezer room, Glen refrigeration also offers wall mounted refrigeration unit and roof mounted refrigeration unit for cold room. Feel free to contact with us for more details.

Wrap the compressor in sound blankets is a effective way to reduce the compressor noise. But Panasonic scroll compressor is well known for low noise level, generally we don’t need the sound blanket for Panasonic scroll compressor. If you need, we also can add according to your requirements.
