Easy to install and service/Natural gas R290/Embraco compressor/EC fan motor

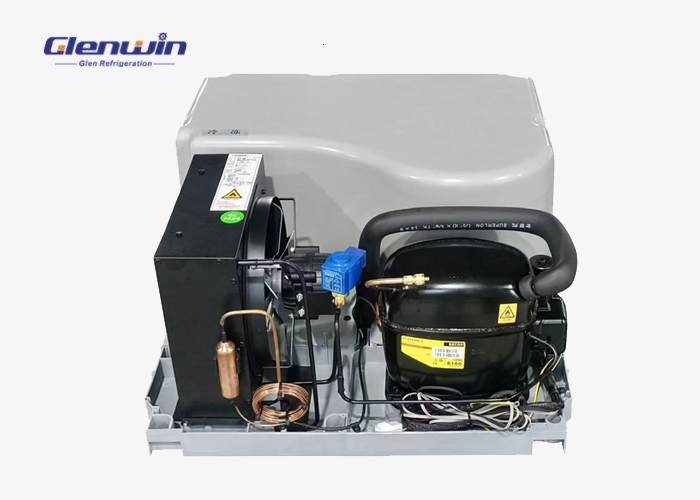

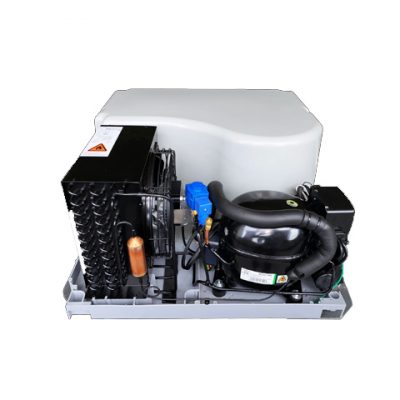

A top mount refrigeration unit is a all in one refrigeration unit installed for top mounting of the commercial chiller fridge and freezer. It is a kind of packaged refrigeration unit with hermetic compressor, condenser, condenser fan motor, filter drier, capillary, evaporator, evaporator fan motor, accumulator and other refrigeration components. These components combined into plug and play refrigeration units, with the benefits of easy installation and highest quality construction standards, which are easy for customers to use. Top mount monoblock refrigeration unit widely used in upright refrigerators, upright freezers, beverage coolers, and commercial display cabinets. According to different cabinet temperature, it has monoblock cooling unit fpr upright refrigerator and monoblock freezing unit for upright freezer.
Top mount refrigeration unit is a integrated refrigeration system, unlike the traditional split refrigeration systems which the condensing unit is separate from the evaporator, refrigerant piping and on-site charging. The top mount refrigeration unit arrives factory assembled and tested, significantly reducing installation time and maintenance requirements.
Top mount monoblock refrigeration unit is a kind of monoblock refrigeration unit, designed for top-mounted installation for commercial refrigerator, upright freezer, display refrigerator, or refrigerated cabinet, so also called roof mounted refrigeration unit. The monoblock refrigeration system integrates the compressor, condenser, evaporator, expansion device, and control system into a single compact plug in refrigeration unit, providing a plug and play installation.
A top mount refrigeration unit is a closed refrigeration cycle. It removes the heat from the upright refrigerator or freezer and maintain in a cold temperature state. The refrigeration components including refrigerator compressor, condenser, evaporator, expansion device, and control system are integrated into a single self-contained refrigeration unit mounted on top of the refrigerator or freezer.
The Secop refrigerator compressor or Embraco refrigerator compressor draw low-pressure vapor refrigerant from the evaporator and compresses it into a high-pressure, high-temperature refrigerant gas.
The hot refrigerant gas flows through the copper tube condenser coil or micro-channel condenser coil, the heat is transferred to the surrounding air by the condenser fan. The refrigerant cools, it condensers into a high-pressure liquid.
The liquid refrigerant passes through the capillary, which reduces the pressure and temperature of liquid refrigerant. This creates a cold refrigerant mixture ready to absorb heat from the inside the upright chiller or freezer.
The cold refrigerant enters the evaporator coil, the heat inside the refrigerator or freezer is absorbed by the refrigerant, cooling the storage space. The refrigerant then returns to the compressor, and the cycle repeats continuously.
For glass door chiller,commercial chiller fridge and so on……
For glass door display freezer, kitchen freezer……
The Top Mount Monoblock Cooling Unit is small self contained refrigeration units, which apply for the application like glass door chiller,commercial chiller fridge and so on.
Technical details:
The Top Mount Monoblock Freezer Unit is a freezer monoblock or a self contained freezer unit. It is applied for glass door display freezer, kitchen freezer, upright freezer and so on.
Technical details:

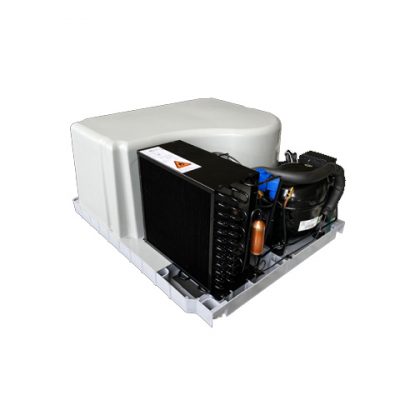

Glen Refrigeration R290 Monoblock Chiller Unit is an “all in one” cooling system designed for stainless steel foam door refrigerator. Glen Refrigeration’s Monoblock uses the refrigerant R290, achieving an environmentally friendly solution and ensuring energy efficiency. The units are designed with a focus one compactness and simplicity. The compact design allows for easy installation, application, maintenance and servicing.
The Monoblock Unit S-M5U is a R290 packaged refrigeration unit system designed for upright display chiller, stainless steel upright cabinet. It uses Embraco compressor or Cubigel compressor or Secop compressor.
The Monoblock Chiller Unit S-M7U is a R290 monoblock cooling unit designed for upright display chiller and stainless steel upright cabinet. It uses Embraco compressor or Cubigel compressor or Secop compressor.
Monoblock unit S-M10U is also designed for stainless steel refrigerator 1400L, but it has more cooling capacity than S-M7U. It is specially designed for high ambient temperature. Three options of Embraco compressor or Cubigel compressor or Secop compressor.
Top mount monoblock units S-M13U keep noise low and offer flexible installation, perfect for stainless steel foam door refrigerator, glass door chiller,commercial chiller fridge, refrigerated vending machine and so on. Monoblock units are compact, easy to install.
Hot gas bypass, means high-temperature, high-pressure gas directly from the compressor bypassing the condenser and flooding the evaporator to melt the accumulated ice directly. The key to a successful hot gas bypass defrost lies in achieving efficient ice removal with minimal energy consumption and temperature fluctuations. Glen Refrigeration offers Monoblock Chiller Unit for -5°C to 0°C upright chiller, with Hot Gas Bypass technology.
Monoblock chiller units SLM5U, hot gas bypass defrost technology have been combined to create higher efficiency for defrosting, designed for stainless steel upright chiller 700L.
SLM7U monoblock chiller unit designed for stainless steel upright chiller 1400L, hot gas bypass defrost technology is used in monoblock refrigeration unit resulting in higher defrosting efficiency.
Using high efficiency compressors, hot gas bypass defrost and utilizing integrated design, the monoblock chiller units SLM10U with hot gas bypass meets the 1400L upright chiller, upright refrigerator.
Monoblock unit SLM13U, combined strong cooling capacity compressor and hot gas bypass defrost, designed for upright chiller and upright freezer 1600L and refrigerated vending machine.
Monoblock Freezer Unit, with their compact design, are an ideal solution for upright freezers. Thanks to their easy installation and high efficiency, their reliability meet the freezing needs of business. Glen Refrigeration’s Monoblock Freezer units use the refrigerant R290, achieving an environmentally friendly solution and ensuring energy efficiency.
SL5U is a R290 monoblock freezer unit and self contained freezer unit designed for upright freezers and stainless steel cabinets and so on. It uses Embraco compressor or Secop compressor.
Freezer refrigeration unit SL7U is designed for upright freezers and stainless steel cabinets and so on. It uses Embraco compressor or Secop compressor.
Monoblock freezer unit SL8U, its compact design and easy installation make the monoblock refrigeration unit highly desirable in commercial freezer upright, standing freezer, upright freezer, upright chiller.
The R290 eco friendly refrigeration unit for commercial refrigerator and freezer above are all 220V/50Hz, but we also can make 220V/60Hz monoblock refrigeration unit or 115/60Hz monoblock refrigeration unit for different countries according to your requirements. If you have any need, welcome to contact with us, we are ready to help. Email: info@greehvacr.com Whatsapp: 0086 15057108995
As leading Monoblock Refrigeration Unit manufacturer and condensing unit manufacturer in China, Glen Refrigeration offers refrigerator condensing units, monoblock refrigeration units, indoor condensing units, outdoor condensing unit, air cooled condensing units, water-cooled condensing units, inverter condensing units for commercial refrigeration.The monoblock refrigeration unit includes:
Top mount refrigeration units are widely used in commercial refrigeration equipment like the upright refrigerator, upright freezer, refrigerated vending machine, refrigerated display cabinet. The drop in refrigeration unit design makes them easy installation and become a popular choice for manufacturers of refrigerators, freezers, display cabinets, and other refrigerated equipment.

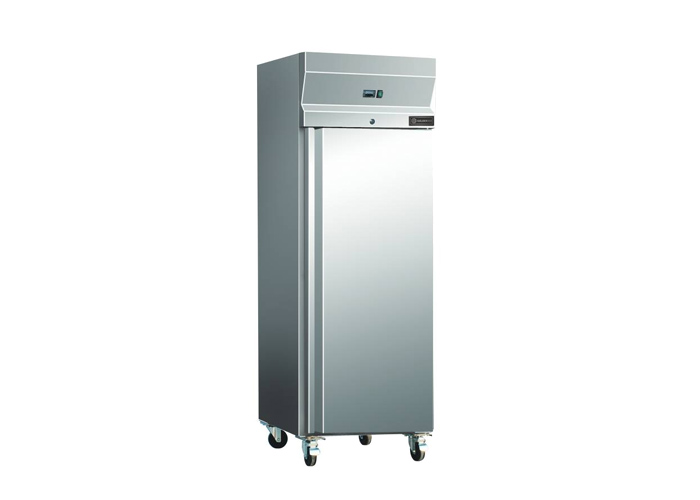

The top mount monoblock cooling units are commonly used in 700L or 1400L stainless steel upright refrigerators and freezers for commercial kitchens for restaurants, hotels, schools and so on. The commercial top mount refrigeration unit provides reliable medium-temperature for the upright refrigerator, reduces installation cost for refrigerator manufacturers. The R290 eco friendly refrigeration unit is also good to our environment.

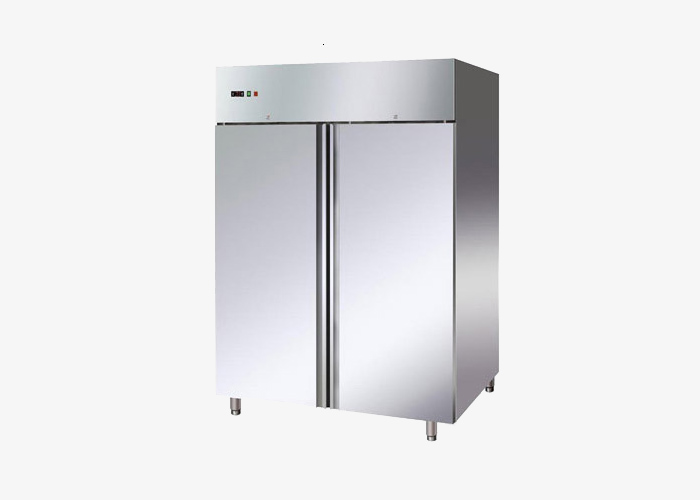

Top mount monoblock freezer unit provides -18 to -22°C low temperature performance for 700L and 1400L stainless steel upright freezers for meat, seafood, ice cream, frozen vegetables, and other temperature-sensitive products. The stainless steel upright freezers with high performance and low maintenance R290 top mount refrigeration unit, are in great demand in commercial kitchens for restaurants, hotels, schools and so on.

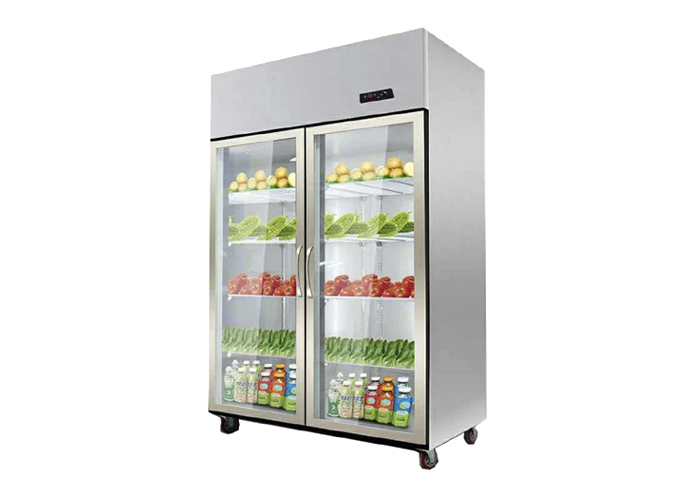

The top mount refrigerator cooling unit or freezer refrigeration unit can also used in glass door display refrigerators. Because the thermal insulation of glass door display refrigerator is worse than stainless steel upright refrigerator and freezer, so same volume of glass door refrigerator and stainless steel refrigerator, the glass door refrigerator will require a larger cooling capacity compressor and monoblock unit.

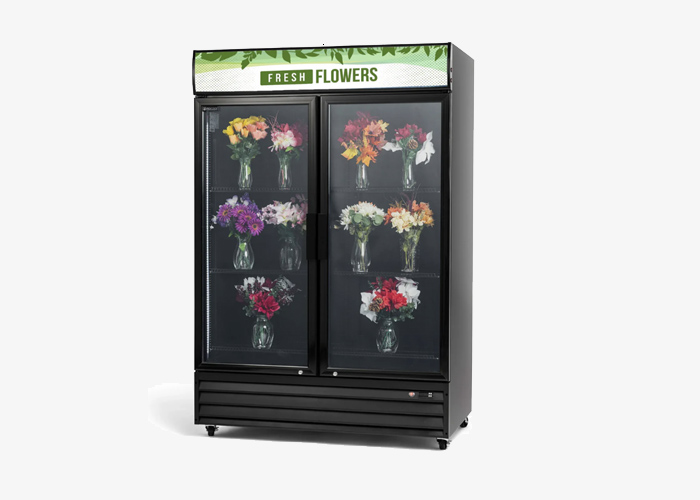

The flower coolers are used to display flowers in the flower shops. The air cooled top mount refrigeration unit provides precise temperature 2 to 8°C to slow flower blooming and inhibit bacteria, with soft air flow avoiding strong wind damaging flower petals. The automatic defrosting of monoblock refrigeration unit reduces water accumulation and manual maintenance.

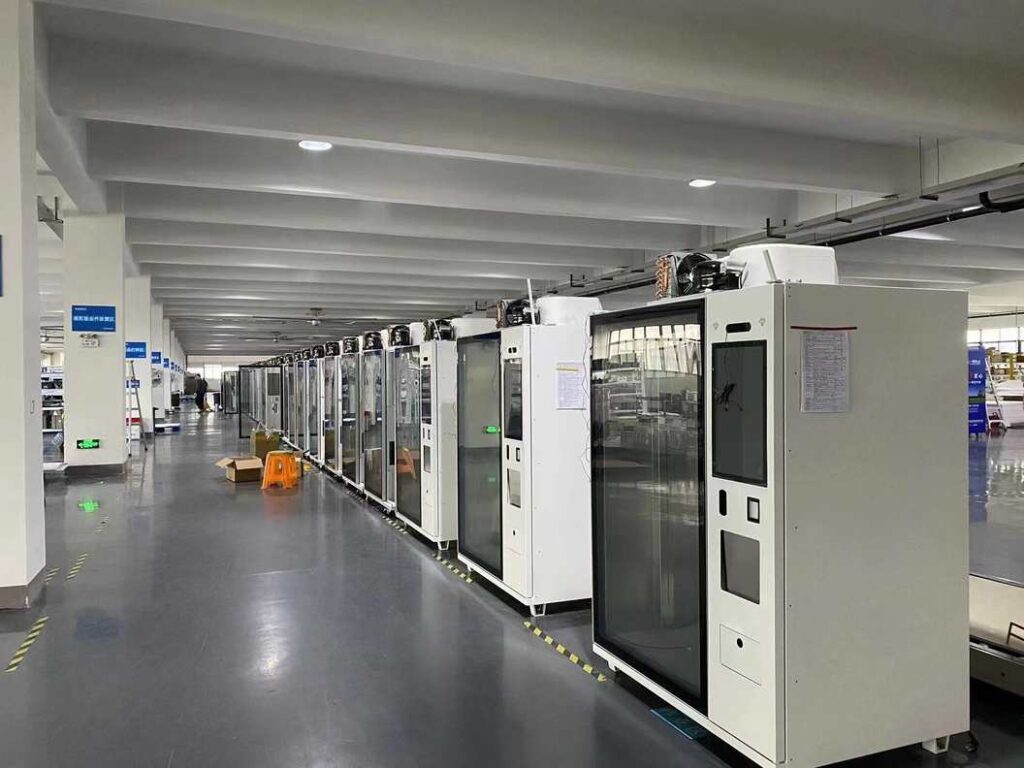

An energy efficient top mount refrigeration unit provides a good solution for refrigerated vending machines because of their plug-and-play design, compact footprint, and reliable cooling performance. They are commonly used for beverage, dairy, and fresh food vending applications. The compact all-in-one design and plug and play installation greatly helps the vending machine manufacturer improve the production efficiency.
Yes, we are. Glen refrigeration is a professional monoblock refrigeration system manufacturer and refrigeration condensing units manufacturers in China. Glen Refrigeration’s units offer a wide range of customizable options to meet specific customer needs, providing an ideal choice for efficient cooling solutions. Additional compressor options, such as Secop compressor, Embraco compressor and Cubigel compressor.
Glen Refrigeration offers its customers high-quality and sustainable products designed to deliver top performance and ensure the longevity of equipment. Our products guarantee reliable and efficient operation for your production and business processes.
With our expert engineering, servicing, and post-sales support, we provide comprehensive solutions tailored to your specific needs, ensuring that you have the right refrigeration solutions for long-term success.
Glen refrigeration offers additional compressor options for monoblock condensing unit, such as Secop compressor or Embraco compressor or Cubigel compressor.
Yes, we can customize according to customers’ need. Could you share more information of your project? It is definitely help us to better understand your needs and provide better customized services.
Yes, we can. Glen refrigeration’s refrigeration monoblock units are built with EC fan motor. And our EC fan motor has a special function, that is it will clean the condenser automatically. When the monoblock cooling unit or monoblock freezer unit is working, the EC fan is sucking air cool the compressor. When the monoblock units stop working, the EC fan change sucking air to blowing air for 90 seconds, blowing off the dust attached to the condenser.
EC motors are approximately 30 percent more efficient than AC motor. Glen Refrigeration provides three different brands of EC motors for customer option.
Glen Refrigeration’s Monoblock uses the refrigerant R290, achieving an environmentally friendly solution and ensuring energy efficiency.
Normally, the temperature controller brand is HONKER. But we also offers additional option of Dixell temperature controller.
If you want to use Dixell brand temperature controller, it is also OK.
For monoblock chiller unit for 2°C to 8°C refrigerator chiller, the defrost mode is fan cooling.
For monoblock refrigeration unit for -5°C to 0°C refrigerator chiller, the defrost mode is Hot Gas Bypass Defrosting.
For monoblock freezer unit for -18°C to -22°C upright freezer, the defrost mode is Hot Gas Defrost Bypass Defrosting.
The solenoid valve brand is HONGSEN.
Yes, the evaporator cover is made by a one-piece mold. It is consist of ABS shell and EPS insulation. The density is 35%, the thickness is 55mm.
The advantage of ABS shell is high strength and easy to clean, inside of the ABS shell is the EPS insulation. It ensures the high insulation and high strength.
Yes, we make the condensers ourselves. It ensures the delivery time of the condensers and also the order.
The OD of the condenser copper tube is 5mm, the thickness is 0.32mm.
The copper tubes and aluminum fins are made with electrophoretic paint. We did 3500 hours salt spray test.
Yes, we make the evaporator ourselves. It ensures the delivery time of the condensers and also the order.
The OD of the evaporator copper tube is 9.52mm, the thickness is 0.32mm.
The copper tubes and aluminum fins are made with electrophoretic paint. We did 3500 hours salt spray test.
Yes, we can offer with inner groove copper tube evaporator, the efficiency can improve around 5%.
We use Pressure maintenance test. No leakage under 30 Mpa nitrogen pressure for 12 hours.
Yes, all joints are brazed.
Glen Refrigeration is committed to manufacture and supply different monoblock refrigeration systems for commercial refrigeration, refrigeration monoblock cooling system for stainless steel cheat freezers, worktop refrigerators, display counters, vending machines, cold storage rooms.
Glen refrigeration offers different options of monoblock refrigeration unit according to different voltages, EC motor fan, compressor brand, temperature controller brand and other special requirements.
The monoblock refrigeration units are optional for different power supply, 220V~240V/50HZ, 220V/60HZ, 115V/60HZ, 100V 50/60HZ……
Compared with normal motor, the EC motor technology has the advantages of high efficiency and energy saving.
Glen refrigeration offers two different condensers. Copper tube & aluminum fin condenser and micro channel condenser.
We offers HONGKER and Dixell temperature controller for your selection. HONKER is our own brand.
Customers can choose different compressor brand, including Secop compressor, Embraco compressor, Cubigel compressor……
If you have special requirements of the monoblock refrigeration unit, we are your custom refrigeration solution provider.
Except the R290 monoblock refrigeration unit, Glen refrigeration also manufactures and supplies R134A monoblock unit and R404A monoblock unit with different voltages. We offer custom cool refrigeration parts and custom refrigeration solutions according to customer’s requirements. After you with contact us, an excel form will be sent to you, helping us to better underdstand customer’s need and improve the design accordingly. Then we will provide a right solution based on your requirements.
