Walk in Cooler Condensing Unit - Copeland ZSI Compressor Condensing Unit

  • With Emerson Copeland ZSI liquid injection scroll compressor
  • Medium temperature and low temperature application
  • From -30°C to 0°C evaporating temperature
  • Power supply 220V/50HZ and 380V/50HZ
  • Cooling capacity from 3HP to 7HP
  • The outdoor condensing unit adopts Emerson Copeland ZSI scroll compressor. The evaporating temperature is -30°C to 0°C, so it is a medium temperature condensing unit and also a low temperature condensing unit.
  • The Copeland air cooled outdoor condensing unit includes ZSI scroll compressor, condenser, condenser fan motor, receiver, accumulator, filter dryer, sight-glass, solenoid valve, high and low pressure controller, high and low pressure gauge, stop valve and other refrigeration components. Oil separator is optional.
  • The outdoor condensing unit widely used in commercial display cabinets, cold room, freezer room, walk in cooler, walk in freezer and so on.

Feature and Benefits

Copeland ZSI Compressor Condensing Unit

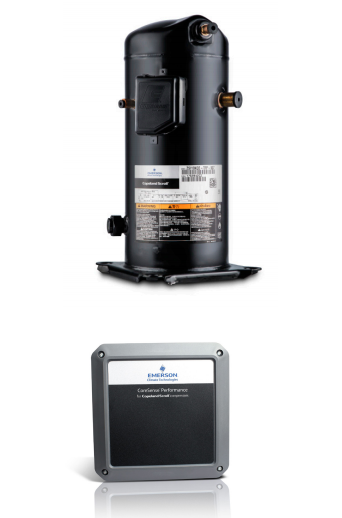

Emerson ZSI Compressor for walk in cooler condensing unit

Liquid injection & CoreSense

Copeland ZSI scroll compressor liquid injection controlled by the CoreSense control board, can regulates liquid injection by sensing the discharge line temperature (DLT). This technology not only widens the operating envelop, but also enhances the reliability of the Copeland walk in cooler condensing unit.

Wide evaporating temperature

Wide evaporating temperature range from -30°C to 0°C. The Copeland scroll compressor condensing units perfectly fits medium temperature application and also low temperature application.

High efficiency & energy saving

The COP improvement of ZSI scroll compressor makes the outdoor condensing unit annual electrical savings of 10%–30% or about $100–$500 per year.

High reliability

Emerson Copeland scroll compressor has fewer parts compared to traditional piston compressors, thus making the commercial  condensing unit more reliable.

Previous
Next

What Choose Glen Refrigeration?

Glen Refrigeration is a professional condensing unit and monoblock refrigeration unit manufacturer in China. Our team has over 10 years of experience in R&D, engineering, production of refrigeration condensing units in various applications throughout the China, including air cooled condensing unit, water-cooled condensing unit, indoor condensing unit, outdoor condensing unit, inverter condensing unit. monoblock refrigeration unit and so on.

Glen refrigeration delivers one-stop refrigeration solutions for commercial refrigeration and industrial refrigeration. From small refrigerator condensing unit to large outdoor condensing unit, we offer sustainable refrigeration condensing unit and systems which are eco-friendly, and energy saving.

Walk in Cooler Condensing Unit - Emerson ZSI Compressor Condensing Unit

Glen refrigeration offers ZSI compressor Copeland Condensing Unit from 3 HP to 7 HP for positive and negative temperature applications. Emerson Copeland scroll compressor ensures excellent cooling performance while guaranteeing the high reliability.

  • With Emerson Copeland ZSI series scroll compressor
  • With liquid injection and CoreSense control
  • Medium temp and low temp application
  • From -30°C to 0°C evaporating temperature
  • Power supply 220V/50HZ and 380V/50HZ
  • Cooling capacity from 3HP to 7HP
3 HP Walk in Cooler Condensing unit (220V/50HZ)

GL-GN30EL is a 3HP 220V/50HZ walk in cooler outdoor condensing unit with Emerson Copeland scroll compressor ZSI08KQE; for medium temperature and low temperature application.

  • Model: GL-GN30EL
  • Power supply: 220V/50HZ, 1 PH
  • Refrigerant: R404A
  • Cooling capacity: 3 HP
  • Application: Medium temp. and low temp.
  • Evaporating temperature: -30°C to 0°C
  • Compressor: Copeland liquid injection scroll compressor ZSI08KQE
  • External dimension(L*W*H): 1000mm*420mm*822mm
4 HP Walk in Cooler Condensing unit (220V/50HZ)

GL-GN40FL is a 4HP Copeland compressor condensing unit. It uses Emerson Copeland scroll compressor ZSI11KQE; For medium temperature and low temperature application.

  • Model: GL-GN40FL
  • Power supply: 220V/50HZ 1PH
  • Refrigerant: R404A
  • Cooling capacity: 4 HP
  • Application: Medium temp. and low temp.
  • Evaporating temperature: -30°C to 0°C
  • Compressor: Copeland liquid injection scroll compressor ZSI11KQE
  • External dimension(L*W*H): 1000mm*420mm*822mm
3 HP Walk in Cooler Condensing unit (380V/50HZ)

GL-GN30FL is a 3HP Copeland outdoor condensing unit. It adopts Emerson Copeland scroll compressor ZSI09KQE; For medium temperature and low temperature application.

  • Model: GL-GN30FL
  • Power supply: 380V/50HZ, 3PH
  • Refrigerant: R404A
  • Cooling capacity: 3 HP
  • Application: Medium temp. and low temp.
  • Evaporating temperature: -30°C to 0°C
  • Compressor: Copeland liquid injection scroll compressor ZSI08KQE
  • External dimension(L*W*H): 1000mm*420mm*822mm
4 HP Walk in Cooler Condensing unit (380V/50HZ)

GL-GN40FL is a 4HP Copeland compressor condensing unit. It uses Emerson Copeland scroll compressor ZSI11KQE; For medium temperature and low temperature application.

  • Model: GL-GN40FL
  • Power supply: 380V/50HZ, 3PH
  • Refrigerant: R404A
  • Cooling capacity: 4 HP
  • Application: Medium temp. and low temp.
  • Evaporating temperature: -30°C to 0°C
  • Compressor: Copeland liquid injection scroll compressor ZSI11KQE
  • External dimension(L*W*H): 1000mm*420mm*822mm
5 HP Walk in Cooler Condensing unit (380V/50HZ)

GL-GN50FL is a 5HP condensing unit with Emerson Copeland scroll compressor ZSI15KQE; It is a Copeland air cooled condensing unit for refrigeration display cabinets, cold room, freezer room, walk in cooler, walk in freezer. For medium temperature and low temperature application.

  • Model: GL-GN50FL
  • Power supply: 380V/50HZ, 3PH
  • Refrigerant: R404A
  • Cooling capacity: 5 HP
  • Application: Medium temp. and low temp.
  • Evaporating temperature: -30°C to 0°C
  • Compressor: Copeland liquid injection scroll compressor ZSI15KQE
  • External dimension(L*W*H): 1010mm*440mm*1220mm
6 HP Walk in Cooler Condensing unit (380V/50HZ)

GL-GN60FL is a 6HP Emerson Condensing unit. It adopts Emerson Copeland scroll compressor ZSI18KQE; For medium temperature and low temperature application.

  • Model: GL-GN60FL
  • Power supply: 380V/50HZ, 3PH
  • Refrigerant: R404A
  • Cooling capacity: 6 HP
  • Application: Medium temp. and low temp.
  • Evaporating temperature: -30°C to 0°C
  • Compressor: Copeland liquid injection scroll compressor ZSI18KQE
  • External dimension(L*W*H): 1010mm*440mm*1220mm
7 HP Walk in Cooler Condensing unit (380V/50HZ)

GL-GN70FL is a 7HP Emerson outdoor condensing unit with scroll compressor ZSI21KQE. It widely used in commercial display chiller, cold room, freezer room, walk in cooler and walk in freezer. For medium temperature and low temperature application.

  • Model: GL-GN70FL
  • Power supply: 380V/50HZ, 3PH
  • Refrigerant: R404A
  • Cooling capacity: 7 HP
  • Application: Medium temp. and low temp.
  • Evaporating temperature: -30°C to 0°C
  • Compressor: Copeland liquid injection scroll compressor ZSI21KQE
  • External dimension(L*W*H): 1010mm*440mm*1220mm

Factory View

Catalog Download

Indoor Condensing Unit
Outdoor Condensing Unit
Outdoor Condensing Unit
Cold Storage Evaporator
ZSI Scroll Compressor walk in cooler condensing unit Refrigeration System Diagram

ZSI Scroll Compressor Refrigeration System Diagram

  • ZSI scroll compressor requires a liquid injection circuit from the system’s liquid line to the compressor’s injection fitting.
  • The liquid injection is controlled by Coresense control board. It can regulates the liquid injection by sensing the discharge line temperature (DLT).
  • DLT sensor is discharge line temperature sensor. The function of the DLT sensor is to determine the degree of the expansion valve, thus ensuring proper injection flow rate.
  • EXV is a expansion valve. The function of expansion valve is to remove the pressure from the liquid refrigerant to allow expansion or change of state from a liquid refrigerant to a vapor refrigerant.
Liquid injection technology of ZSI compressor walk in cooler condensing unit

What’s the Functions and Advantages of Liquid Injection of ZSI Scroll Compressors?

  • The function of liquid injection is to protect the compressor from high discharge temperature failure and improve the compressor reliability in low temperature condition.
  • An Injection EXV must be applied when using the ZSI scrolls for liquid injection operation. This valve is approved for all refrigerants in this product range.
  • Liquid injection ZSI scroll compressor has extremely enhanced reliability compared to non-injection scroll compressors at low temp application.
CoreSense of ZSI Scroll Compressor

What is the CoreSense of ZSI Scroll Compressor?

  • CoreSense is a control module or control board. It controls the amount of the liquid injection by measuring the discharge temperature by an DLT sensor mounted on the discharge pipe.
  • The CoreSense can automatically calculates the expansion valve’s opening and commands it to inject the optimized amount of liquid refrigerant into the compressor.
