3 hp Low Temp Condensing Unit Indoor Condensing Unit Air Cooled

3 hp Low Temp Condensing Unit

GL-HSN30EL is a 3 hp medium temp and low temp refrigeration condenser unit with Sanyo refrigeration rotary compressor, are designed for high reliability. Its low height design and easy installation are ideal for refrigerated display cases. The horizontal indoor condensing unit are designed for rooftop mounted or bottom mounted in commercial refrigeration.

Model: GL-HSN30EL
Power supply: 220V~240V/50HZ
Refrigerant: R404A, R448A, R449A
Cooing capacity: 3 HP
Evaporating temperature range: -5~-45°C
Compressor: Sanyo refrigeration compressorC-3RH463L4AAL
Height: 263mm

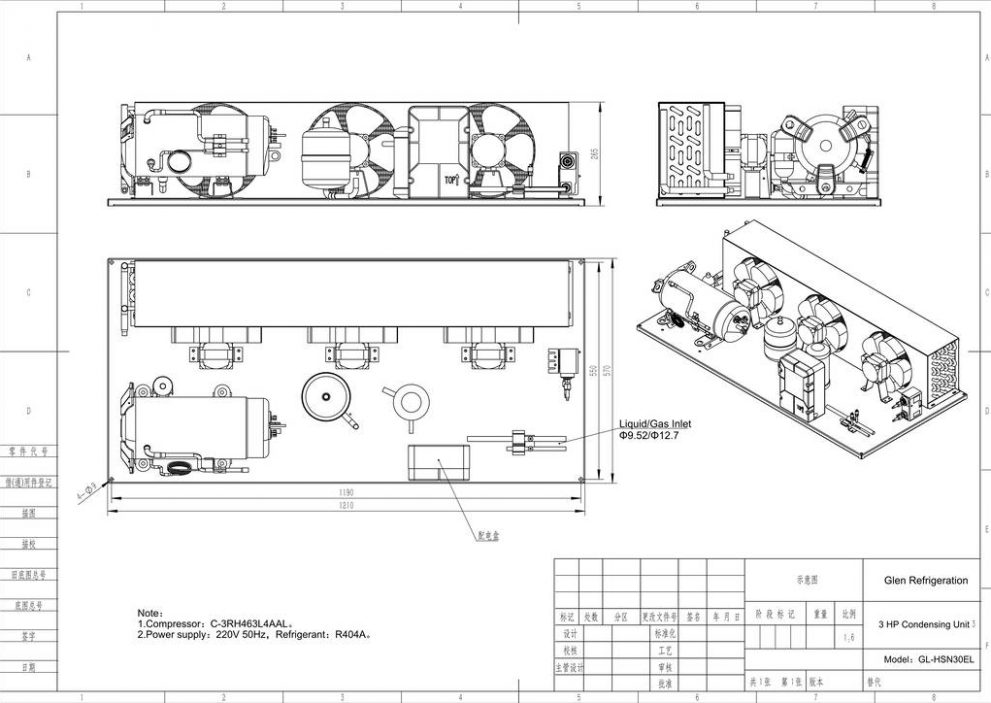

3 hp Low Temp Condensing Unit GL-HSN30EL DRAWING

Refrigeration System Diagram

Horizontal Condensing Unit Wire Diagram

This diagram is to used as reference for horizontal condensing unit. Horizontal Condensing Unit Models:

GL-HSN7.5EL
GL-HSN10EL
GL-HSN15EL
GL-HSN20EL
GL-HSN25EL
GL-HSN30EL

Other Models Of Horizontal Condensing Unit

Sanyo Refrigeration Compressor
EBM motor
Refrgerant: R404A, R448A, R449A, R455A
Evaporating Temperature: -5°C to -45°C
Cooling Capacity: 0.75 HP to 3 HP

3/4 HP Condensing Unit

1 HP Condensing Unit

1.5 HP Condensing Unit

2 HP Condensing Unit

3 HP Condensing Unit

Medium Temp and Low Temp Condensing Unit Manufacturer

Providing the cooling capacity from 0.75 HP to 3 HP, the horizontal air cooled indoor condensing unit widely used in refrigerated display cases, upright glass door freezer, commercial fridge, meat display cases and so on.

The horizontal refrigeration condensing unit is a air cooled self contained condensing unit, features high efficiency, high reliability, low height, compact size, wide evaporating temperature. With evaporating temperature range from -5°C to -45°C, the horizontal condensing unit is a medium temp condensing unit and also a low temp condensing unit.

The condensing unit use Sanyo CRSS refrigeration compressor, which AVIC Sanyo is a leading manufacturer of rotary refrigeration compressor for air conditioning and commercial refrigeration. The horizontal refrigeration compressor with horizontal structure, low height and liquid injection cooling tube, is special designed for commercial refrigeration.

Glen Refrigeration is China’s leading manufacturer of condensing unit and refrigeration unit for commercial refrigeration. The product range includes small refrigerator condensing unit, large refrigeration condensing unit, indoor condenser unit, outdoor condenser unit, air cooled condenser unit, water cooled condenser unit, split condenser unit, monoblock refrigeration unit, fixed speed condensing unit, inverter condenser unit.
