2 hp Refrigeration Compressor for MBP & LBP Refrigeration

C-3RH322L4AAL is a 2 HP refrigeration compressor for medium temperature refrigeration and low temperature refrigeration. Glen Refrigeration, as a reliable provider of Sanyo CRSS compressor, we offer R404A compressor and R290 compressor for commercial refrigeration. They are rotary vane compressor, combine with liquid injection cooling technology, reduce the discharge temperature for high reliability. C-3RH322L4AAL is a horizontal rotary compressor, maximize the effective volume of the display cabinet.

  • Model: C-3RH322L4AAL
  • Power supply: 220V~240V/50HZ, Single Phase
  • Refrigerant: R404A, R448A, R449A
  • Horsepower: 2 HP
  • Cooling Capacity: 2000W (at Evaporating Temp. -23.3°C)
  • Evaporating temperature range: -5~-45°C
  • Height: 222 mm
  • Application: MBP & LBP

High Reliability

High reliable design in rotary refrigeration compressor for commercial refrigeration.

High Efficiency

Leading the way in high efficiency for commercial refrigeration.

Low Height

Make the indoor condensing unit low height and compact size .

Glen Refrigeration, A Reliable Provider for Sanyo Rotary Refrigeration Compressor for Commercial Refrigeration

Glen Refrigeration is a leading manufacturer of condensing unit and monoblock refrigeration unit in China. It is recognized in product innovation, its commitment to providing outstanding customer service and its ability to provide tailored and fully supported commercial refrigeration systems.

The products range includes refrigerator condensing unit, horizontal condensing unit, indoor condensing unit, outdoor condensing unit, air cooled condensing unit, water cooled condensing unit, monoblock refrigeration unit, inverter condensing unit and many other products.

Glen Refrigeration is dedicated to research and development, resulting in commercial industry leading condensing unit and refrigeration unit both in terms of energy efficiency and environmental impact.

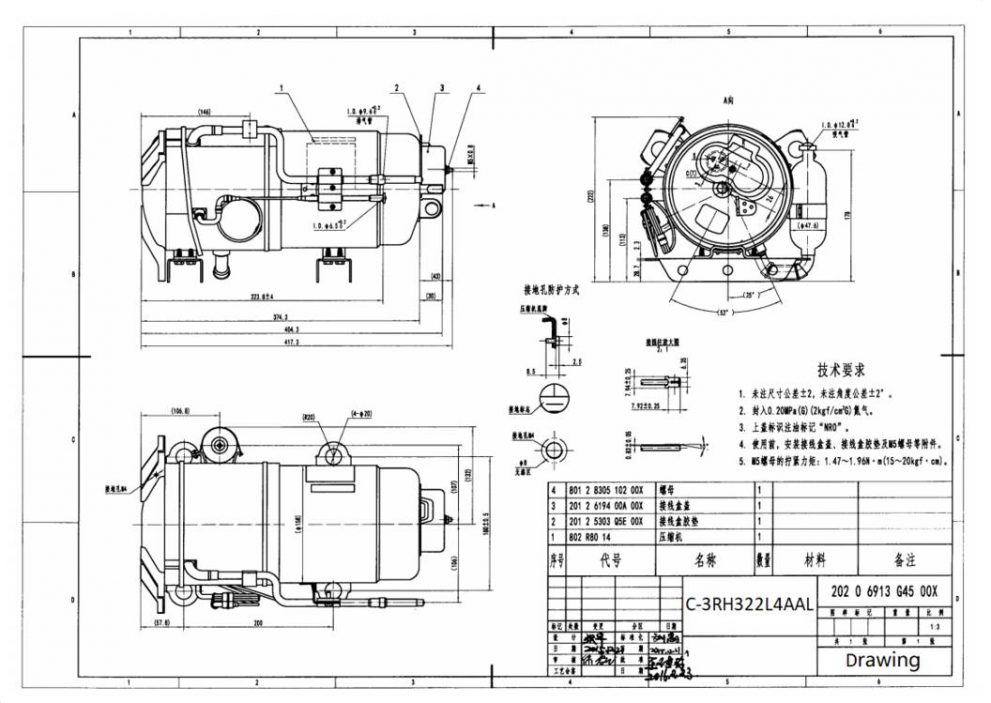

2 hp Refrigeration Compressor C-3RH322L4AAL Drawing

2 hp Refrigeration Compressor C-3RH322L4AAL Drawing

Horizontal Refrigeration Compressor Installation

Refrigeration System Diagram

Refrigeration system diagram

Other Models of Horizontal Refrigeration Compressor

1/2 HP Refrigeration Compressor

C-6RHV092L4AAL

Vertical 2 HP Refrigeration Compressor

  • Model: C-3RV322L4AAL
  • Power supply: 220V~240V/50HZ, Single Phase
  • Refrigerant: R404A, R448A, R449A
  • Horsepower: 2 HP
  • Cooling Capacity: 2010 W (at Evaporating Temp. -23.3°C)
  • Evaporating temperature range: -5~-45°C
  • Height: 457.3 mm
  • Application: MBP & LBP
R404a vertical refrigeration rotary compressor

Vertical Refrigeration Compressor Application

Other Models of Vertical Refrigeration Compressor

3/4 HP Refrigeration Compressor

C-RV133L4AL

1 HP Refrigeration Compressor

C-RV161L4AAL

1.5 HP Refrigeration Compressor

C-RV220L4AL

2 HP Refrigeration Compressor

C-3RV322L4AAL

2.5 HP Refrigeration Compressor

C-3RV359L4AAL

3 HP Refrigeration Compressor

C-3RV463L4AAL

You May Also Like:

R290 Compressor for Commercial Refrigeration

Glen Refrigeration proudly offer ECO-friendly R290 propane refrigerant compressor for commercial refrigeration, including R290 non inverter compressor and R290 inverter compressor.

Variable Speed Refrigeration Compressor

Glen refrigeration proudly offers Sanyo variable speed compressor for commercial refrigeration, including R404A variable speed refrigeration compressor and R290 inverter compressor.

Commercial Refrigeration Compressor Applications:

Glen Refrigeration is committed to be a one-stop-shop of refrigeration compressor, condensing unit and monoblock refrigeration unit for commercial refrigeration. We has proudly served the commercial refrigeration industry with the most customer-focused solutions and innovations. We continuously provide the products, including Sanyo R404A compressor, R290 compressor, variable speed refrigeration compressor, refrigerator condensing unit, horizontal condensing unit, indoor condensing unit, outdoor condensing unit,air cooled condensing unit, water-cooled condensing unit, inverter condensing unit, monoblock refrigeration unit and many other products.

The refrigeration compressor is rotary vane type, combined with liquid injection cooling, specially designed for medium temperature refrigeration and low temperature refrigeration. The horizontal refrigeration compressor features low height and compact size. They widely used in upright display chiller and freezer, self contained plug in displays, ice cream display cabinet, cold room, freezer room, walk in cooler, walk in freezer and many other products.
