1 hp Refrigeration Compressor for Commercial Refrigeration

Glen Refrigeration offers Sanyo brand rotary refrigeration compressor C-RHV161L4AAL, R404A 1 hp refrigeration compressor for medium temperature refrigeration and low temperature refrigeration. It is famous for its high reliability and high efficiency. Its low height design and easy installation make the horizontal condensing unit highly desirable in commercial refrigeration applications.

  • Model: C-RHV161L4AAL
  • Power supply: 220V~240V/50HZ, Single Phase
  • Refrigerant: R404A, R448A, R449A
  • Horsepower: 1 HP
  • Cooling Capacity: 1100W (at Evaporating Temp. -23.3°C)
  • Evaporating temperature range: -5~-45°C
  • Height: 179mm
  • Application: MBP & LBP

High Reliability

High reliable design in rotary refrigeration compressor for commercial refrigeration.

High Efficiency

Leading the way in high efficiency for commercial refrigeration.

Low Height

Make the indoor condensing unit low height and compact size .

Glen Refrigeration, A Reliable Provider for Sanyo Rotary Refrigeration Compressor for Commercial Refrigeration

Glen Refrigeration is a condenser unit and monoblock refrigeration unit leader in China. We have been leading the way in energy efficiency for many years, and we offer inverter condensing unit, water-cooled condensing unit to help our customers lower energy use and costs throughout their operations. We proudly offer R290 condensing unit and R290 monoblock refrigeration unit that reduce refrigerant emissions and decrease their impact on the ozone layer and climate change.

Except the condensing unit and monoblock refrigeration, Glen refrigeration offers Sanyo CRSS compressor for commercial refrigeration. Sanyo takes the leading way in R290 propane compressor and inverter compressor for commercial refrigeration, including R290 non inverter compressor and R290 inverter compressor for MBP and LBP.

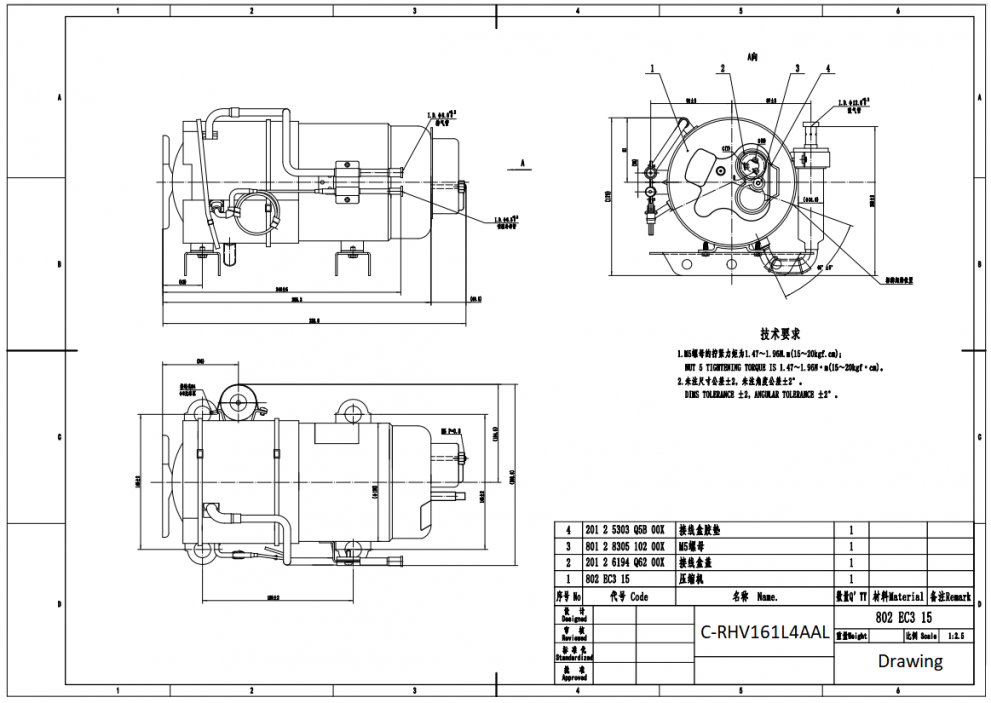

1 hp Refrigeration Compressor C-RHV161L4AAL Drawing

1 hp Refrigeration Compressor C-RHV161L4AAL drawing

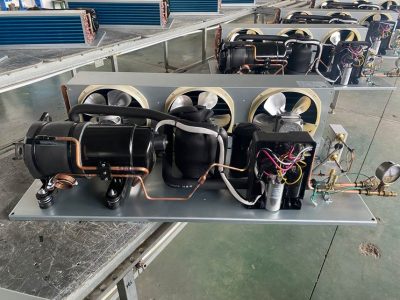

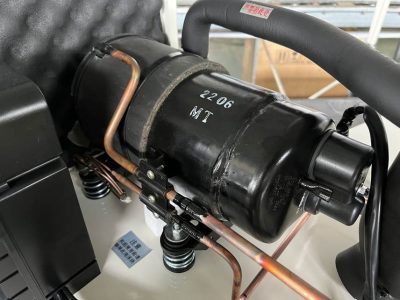

Horizontal Refrigeration Compressor Installation

Refrigeration System Diagram

Refrigeration system diagram

Other Models of Horizontal Refrigeration Compressor

1/2 HP Refrigeration Compressor

C-6RHV092L4AAL

Vertical 1 HP Refrigeration Compressor

  • Model: C-RV161L4AAL
  • Power supply: 220V~240V/50HZ, Single Phase
  • Refrigerant: R404A, R448A, R449A
  • Horsepower: 1 HP
  • Cooling Capacity: 1090W (at Evaporating Temp. -23.3°C)
  • Evaporating temperature range: -5~-45°C
  • Height: 319.1mm
  • Application: MBP & LBP
R404a vertical refrigeration rotary compressor

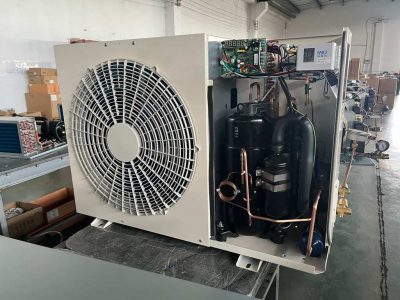

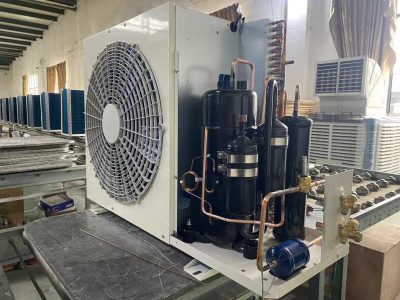

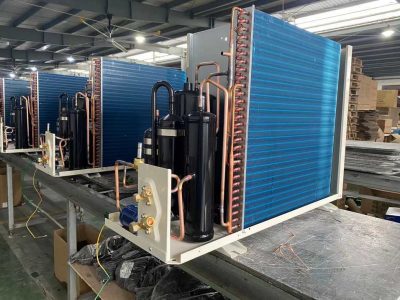

Vertical Refrigeration Compressor Application

Other Models of Vertical Refrigeration Compressor

3/4 HP Refrigeration Compressor

C-RV133L4AL

1 HP Refrigeration Compressor

C-RV161L4AAL

1.5 HP Refrigeration Compressor

C-RV220L4AL

2 HP Refrigeration Compressor

C-3RV322L4AAL

2.5 HP Refrigeration Compressor

C-3RV359L4AAL

3 HP Refrigeration Compressor

C-3RV463L4AAL

You May Also Like:

R290 Compressor for Commercial Refrigeration

R290, is a ECO-friendly replacement of CFC & HFC refrigerants in refrigeration & HVACR. Glen Refrigeration offers R290 non inverter compressor and R290 inverter compressor for commercial refrigeration.

Variable Speed Refrigeration Compressor

Designed for energy saving, Glen refrigeration offers Sanyo variable speed compressor for commercial refrigeration, including R404A variable speed refrigeration compressor and R290 inverter compressor.

Commercial Refrigeration Compressor Applications:

Glen Refrigeration offers Sanyo rotary vane compressor for commercial refrigeration. It is not an air conditioner compressor, but a refrigeration compressor for MBP and LBP. The rotary compressor, equipped with liquid injection cooling technology, special designed for medium temperature refrigeration and low temperature refrigeration. The liquid injection cooling technology have been combined to reduce the discharge temperature for high reliability of the refrigeration compressor.

The product range includes 1/2 hp refrigeration compressor, 1 hp refrigeration compressor, 1.5 hp refrigeration compressor, 2 hp refrigeration compressor, 2.5 hp refrigeration compressor and 3 hp refrigeration compressor. Applications include upright display chiller and freezer, self contained plug in displays, ice cream display cabinet, cold room, freezer room, walk in cooler, walk in freezer and many more.

Other Refrigeraton Condenser Units and Evaporators

Glen refrigeration is a leading manufacturer of condensing unit and monoblock refrigeration unit for different types of commercial refrigeration equipment. From small refrigeration system to large refrigeration system, we offer our clients a broad range of products, including refrigerator condensing unit, monoblock refrigeration unit, air cooled condensing unit, water-cooled condensing unit, indoor condensing unit, outdoor condensing unit, and inverter condensing unit.

Glen Refrigeration is dedicated to research and development, resulting in commercial industry leading products both in terms of energy efficiency and environmental impact.

We don’t display overall products here. If you can’t find the right products, feel free to email or call us. Email: info@greehvacr.com Phone(Whatsapp): 0086-15057108995

Monoblock cooling unit monoblock freezer unit
Monoblock Refrigeration Unit
ZSI Compressor walk in cooler condensing unit 3HP 4HP 5HP 6HP 7HP
Outdoor Condenser Unit
Water-cooled condenser unit Glen Refrigeration
Water-Cooled Condenser Unit
Wall mounted refrigeration unit packaged refrigeration unit
Wall Mounted Refrigeration Unit
Commercial condensing unit 3hp
Indoor Condenser Unit
Cold Room Evaporator
